Autonics TM Series Modular Controllers

Modular Multi-Channel PID Temperature Controllers

Request A Quote

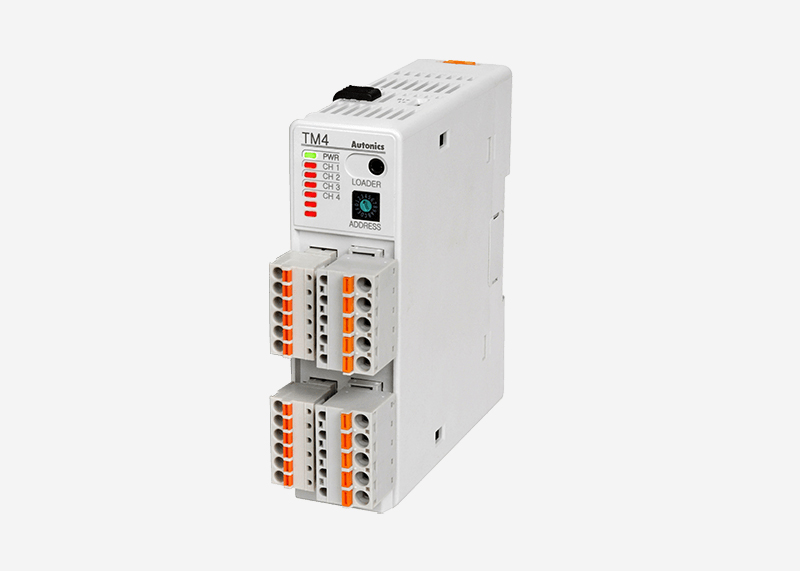

The TM series modular type PID temperature controllers are capable of controlling up to 4 channels (TM4) or 2 channels (TM2) simultaneously. Using the expansion connectors, the TM series can be easily expanded to control up to 124/62 channels (TM4/TM2) without additional wiring for power or communication. The temperature controllers feature high-speed sampling cycles (TM4: 100 ms / TM2: 50 ms), RS485 communication support, and simultaneous heating and cooling control. Parameter configuration and status monitoring via PC is easy with the included DAQMaster software.

Main features

  • Multi-channel (4-channel : TM4/2-channel : TM2) input and output control
  • High-speed sampling cycle (4-channel : 100ms/2-channel : 50ms)
  • Module connection and expansion with expansion connectors
    • Communication between modules
    • No additional power supply wiring
    • Expandable up to 31 units (124-channels/62-channels)
  • Simultaneous heating and cooling control function
  • Isolated input channels (dielectric strength : 1000VAC)
  • Switch between current output and SSR drive output (TM2-◻2C)
  • Parameter configuration via PC (USB and RS485 communication)
    • DAQMaster software included (comprehensive device management software)
    • Communication converter sold separately : SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
  • Easy wiring and maintenance with various connectors : sensor input connector, control output connector, power/communication connector
  • Heater disconnect alarm function (CT input)
    • Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
  • Various input types and temperature ranges
